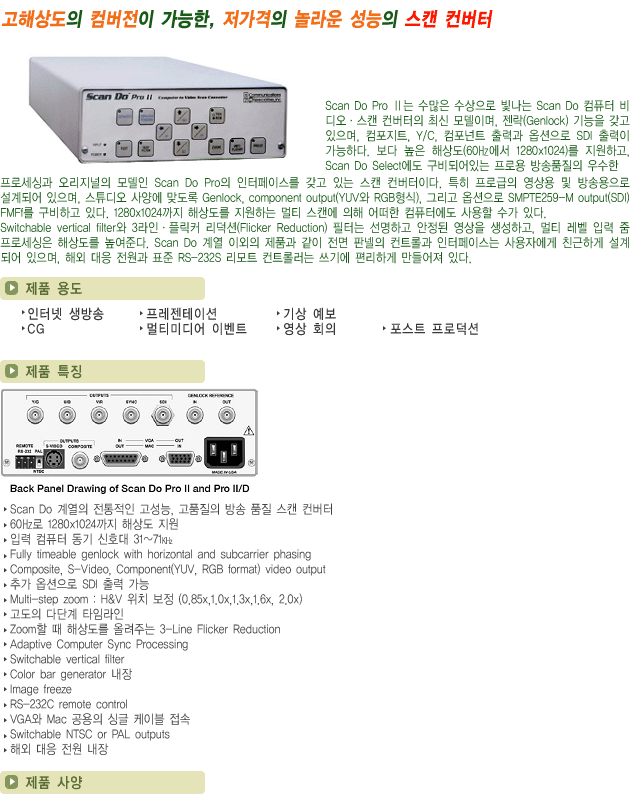

EQUIPMENT INCLUDED : |
¤ýScan Do Pro II or Pro II/D
¤ýAC line cord
¤ý6 ft. VGA/Mac input cable
¤ý12 ft. S-Video cable
¤ý12 ft. BNC to BNC output cable
¤ýUser Manual |
|
INPUT/OUTPUT CONNECTORS : |
¤ýHD-15F for Mac input and DB-15F for VGA
input (using supplied reversible input cable)
¤ý DB-15F for Mac output, HD-15F for VGA output
¤ýComposite video output: BNC connector
¤ýS-Video output: 4-pin mini-DIN-F
¤ýComponent/RGBS outut: BNC x 4
¤ýSDI output: BNC
¤ýGenlock: BNC
¤ýRemote Control: RS-232 on 3-pin ¡°Phoenix¡±
type connector
|
|
INPUTS : |
¤ýHorizontal sync frequency range: 31-71
kHz (320 x 200 to 1280 x 1024), analog RGB,
non-interlaced resolutions
¤ýInput Impedance: RGB - 75 Ohms Sync - high
impedance
¤ýInput Sync Types Supported: Separate H&V,
composite sync (with or without serration),
sync-on-green
¤ýInput Loop-Through: Passive, selfterminating
if not used
¤ýGenlock reference input with loop-through |
|
COMPUTER AND VIDEO PROCESSING: |
¤ýInput sampling: 24-bit (8-bits per RGB)
¤ýSamples: 720 per line
¤ýComputer mode detection: auto measurement
¤ýVideo processing: 16 bit YUV
¤ýVideo memory: 720 x 740 x 16 bits (1 video
frame)
¤ýVideo encoding: 16-bit 4:2:2 YUV with 10-bit
output D/A
¤ýZoom ratios: 0.85x, 1.0x, 1.3x, 1.6x, 2.0x
¤ýDifferential Gain: <1%
¤ýDifferential Phase: <1 degree
¤ýFrequency Response: 6.5 MHz (-3 dB)
|
|
OUTPUT : |
¤ýVGA and Mac loop-through output
¤ýYUV, RGB and RGBS component
¤ýSerial Digital Video SDI (Pro II/D only)
¤ýS-Video
¤ýComposite video
¤ýSwitchable NTSC or PAL timing
|
|
POWER : |
¤ýInternal universal input AC power supply
¤ýInput: 100 - 250 VAC, 47 - 63 Hz
¤ýUL/CSA/TUV/CE approved
¤ýIEC 320 connector
¤ýMaximum specified power:
¤ýScan Do Pro II: 17 Watts
¤ýScan Do Pro II/D: 18 Watts |
|
DIMENSIONS : |
¤ý7.25 W x 2.5 H x 11 D (inches)
¤ý184.1 W x 63.5 H x 279.4 D (mm)
¤ýWeight: Approx. 3 lbs.; 1.4 kg
|
|
Warrenty : |
¤ý±¸ÀÔÀϷκÎÅÍ 3³â°£ |
|
